Stream Website Visits to Power BI using Azure Stream Analytics

In this post, I will show how to setup Azure Stream Analytics to process visits from web site in real time and show results in Power BI.

Setup Azure Stream Analytics

First, we are going to setup Azure Stream Analytics

Login to https://manage.windowsazure.com

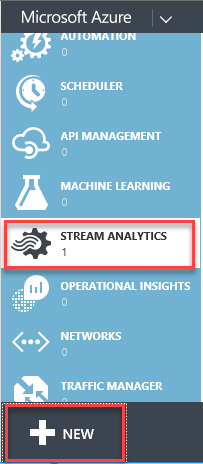

Select Stream Analytics -> NEW -> Quick Create

Enter Job Name, Region and Storage Account.
Click Create Stream Analytics Job.

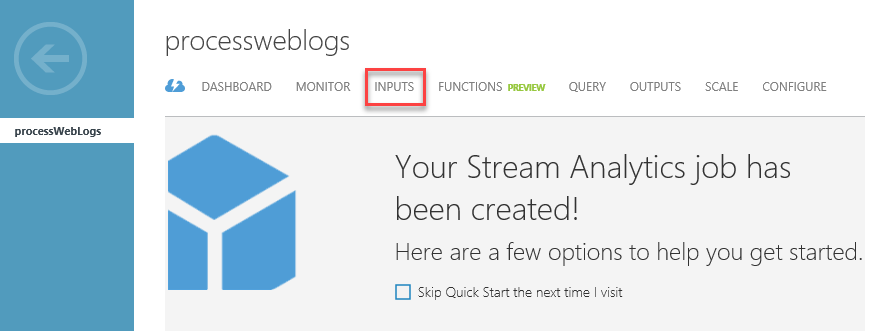

When deployment is finished, click on the job name.

Go to INPUTS

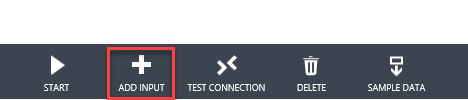

Click ADD INPUT

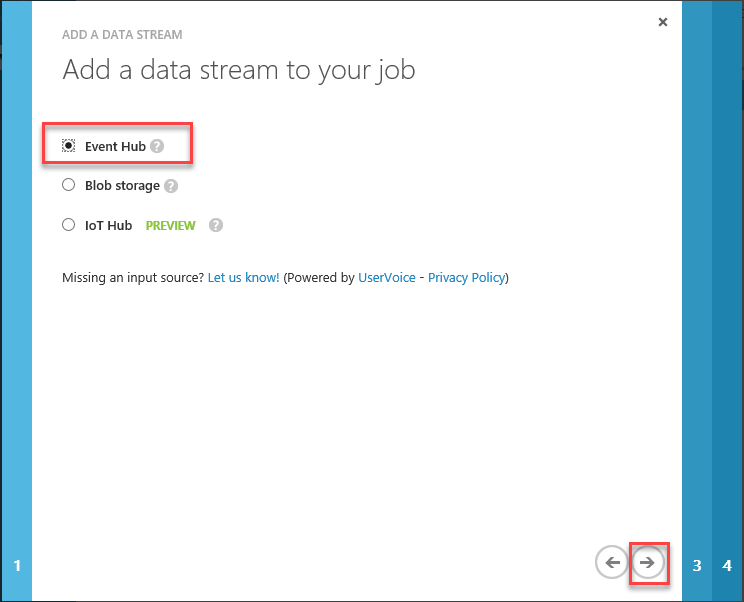

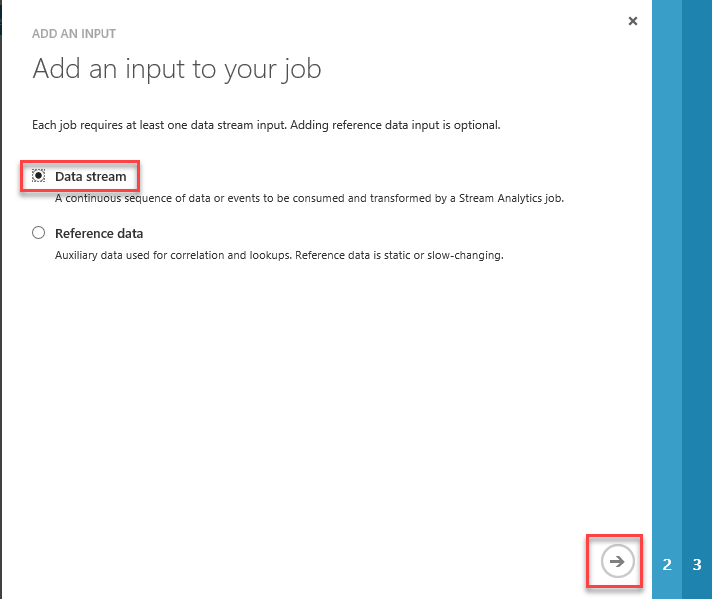

Select Data stream

Event Hub

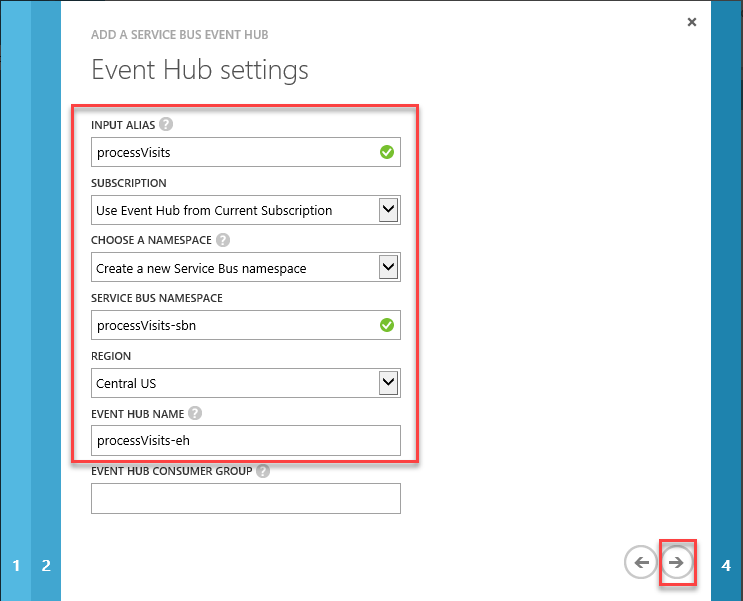

Enter Input Alias, Service Bus Namespace
Select Region and enter Event Hub Name

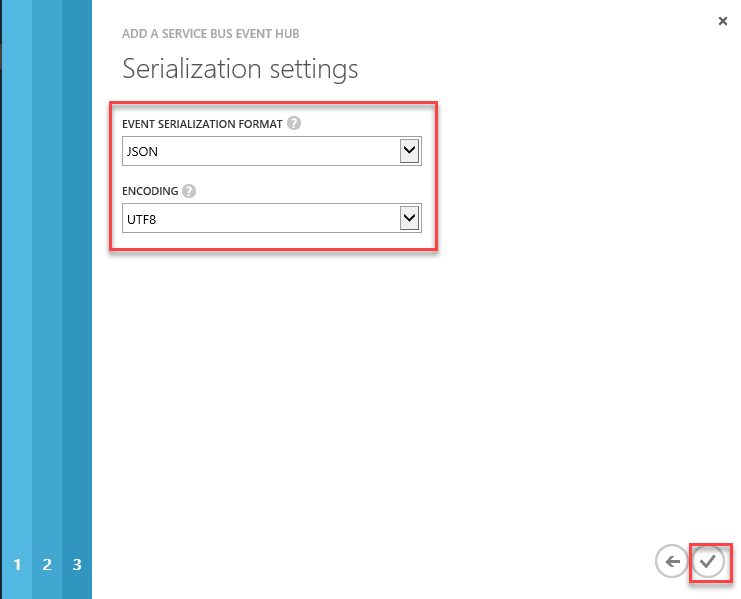

Select JSON as Event Serialization Format and UTF8 as Encoding
Confirm

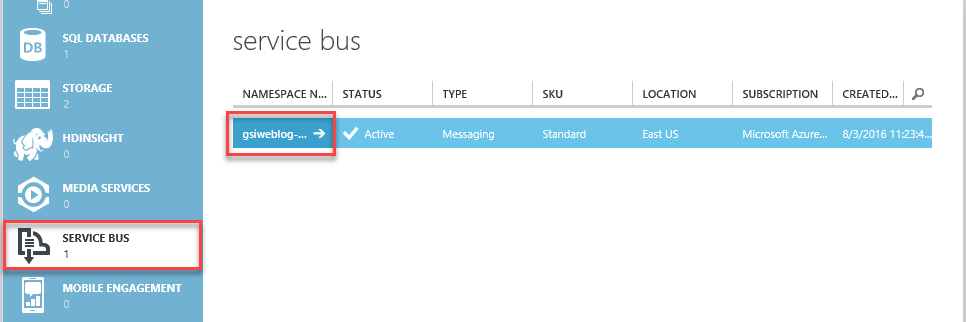

When deployed, go to Service Bus. (Note the namespace – we are going to need this later). Click on the namespace.

Click CONFIGURE – note policy name and primary key – we are going to need this later).

Send Visits to Event Hub

Next, we have to add a code to our web site that will send information about visits to event hub.
You can choose from few SDKs supporting Service Bus, such as: .NET, Java, Node.js, etc.
For more information, visit:
https://azure.microsoft.com/en-us/documentation/articles/service-bus-dotnet-get-started-with-queues/

For simplicity, in our example I used JavaScript. (Since we have to enter all information regarding connection to our Event Hub to the JavaScript, I don’t recommend to use this method for public websites).
Here is the link to JS SDK:
https://github.com/ddobric/ServiceBusJavaScriptSdk/wiki/Welcome-to-Azure-Service-Bus-JavaScript-SDK-1.2

Here is the example of simple html file that will send all information about a visit every time someone opens the web site. (as the base, I used the ServiceBusSample app that comes with JS SDK).


<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
   <title>Welcome Test Page</title>
   <link rel="stylesheet" href="css/qunit-git.css" type="text/css" />
   <link rel="stylesheet" href="css/main.css" type="text/css" />
   <script type="text/javascript" src="http://code.jquery.com/jquery-latest.js"> </script>
   <script src="Scripts/servicebusjssdk-1.2.min.js"></script>
   <link rel="stylesheet" href="css/shCore.css" type="text/css" />
   <link rel="stylesheet" href="css/shThemeEclipse.css" type="text/css" />
   <script src="Scripts/shCore.js"></script>
   <script type="text/javascript" src="Scripts/shBrushJScript.js"></script>
   <script type="text/javascript">
       $(document).ready(function () {
           var queuePath = "<enter event hub name>";
           var ehClient = new EventHubClient(
           {
               'name': queuePath,
               'devicename': 'jsweblog',
               'namespace': "<enter you Event Hub namespace",
               'sasKey': "<enter primary key",
               'sasKeyName': "<enter policy name",
               'timeOut': 10,
           });

           $.get("http://ipinfo.io", function (response) {
               var d = (new Date).toISOString().replace(/z|t/gi, ' ').trim();
               var location = ""
               if (response.region == "") {
                   location = response.city + ", " + response.country;
               } else {
                   location = response.city + ", " + response.region + ", " + response.country;
               }
               var eventBody = { "logdate": d, "ip": response.ip, "country": response.country, "city": response.city, "region": response.region, "location": location };
               var msg = new EventData(eventBody);

              ehClient.sendMessage(msg, function (messagingResult) {
                   $("#result").html(messagingResult.result);
                   $("#eventData").html(JSON.stringify(eventBody));
               });
           }, "jsonp");
       });
   </script>
</head>
<body>
   <section class="container ">
       <h1 id="qunit-header" class="sample-page-title">Welcome !!</h1>
       <h2 id="qunit-banner" />
       <div class="inner-wrapper">
           <div class="message-wrapper">
               <p>Event Data:</p>
               <div id="eventData">
               </div><br />
               <p>Message Body:</p>
               <div id="result">
               </div><br />
           </div>
       </div>
   </section>
</body>
</html>

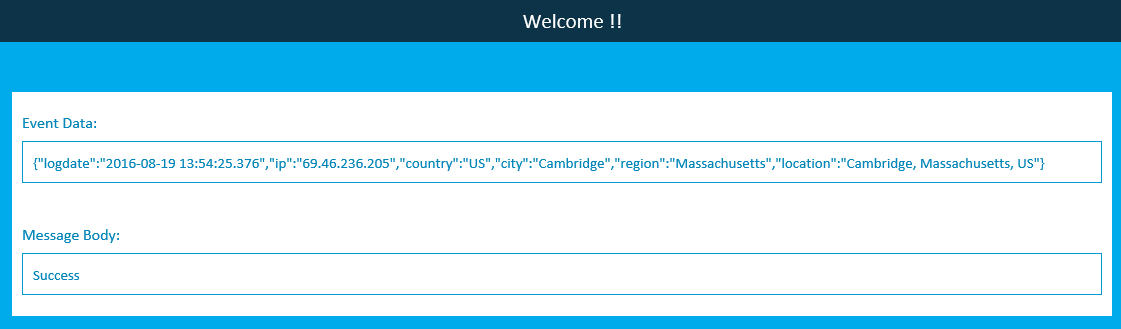

When you open this page, you will see something like that:

Event Data is the string in JSON format that was sent to Event Hub
Message Body: It is the status return from Event Hub.

Configure Azure Stream Analytics

In this step, we are going to write query to process JSON sent from our web site and output it to Power BI table.

Outputs

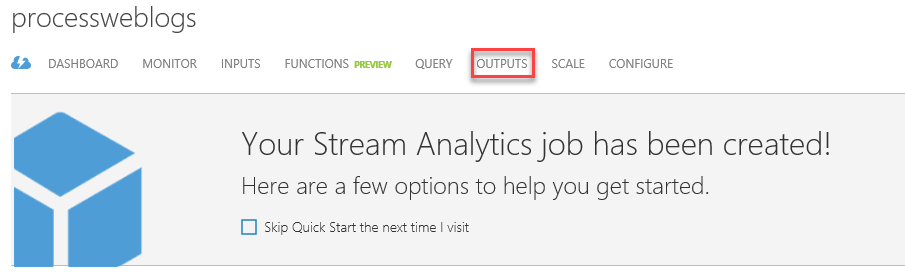

Go back to Stream Analytics and click OUTPUTS

Click ADD OUTPUT

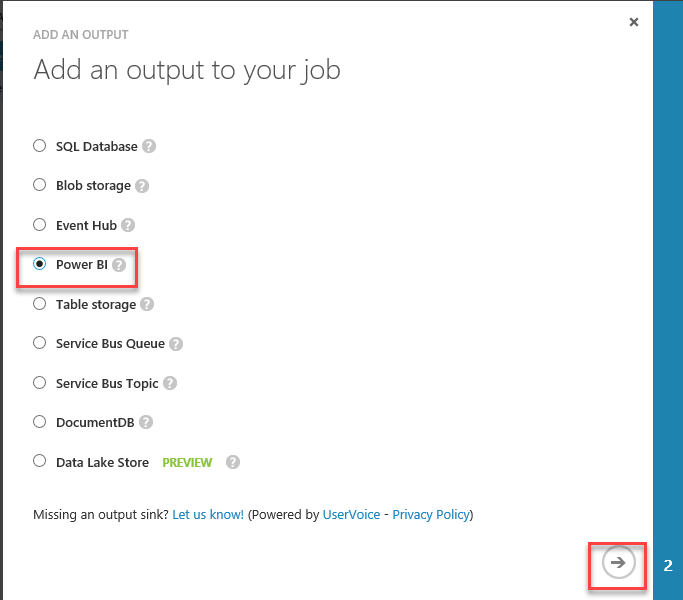

Select Power BI

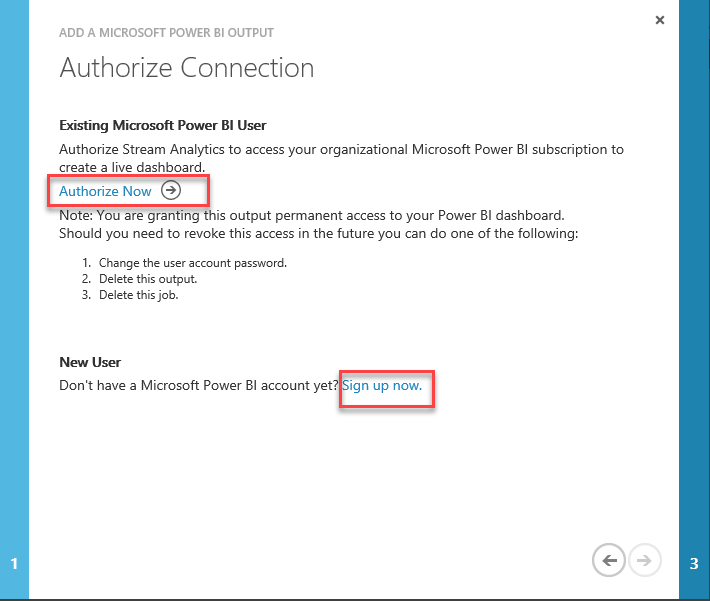

Click “Authorize Now” or “Sign up now” to create new Power BI account.

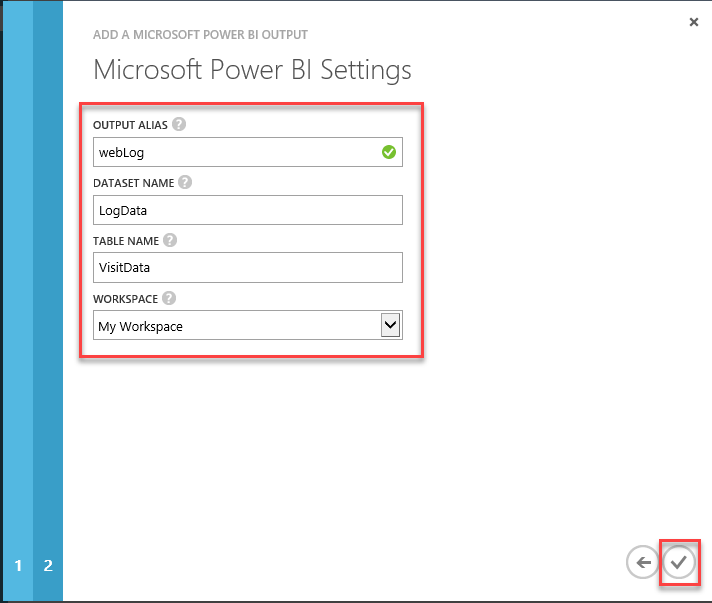

Fill out all information and confirm

Query

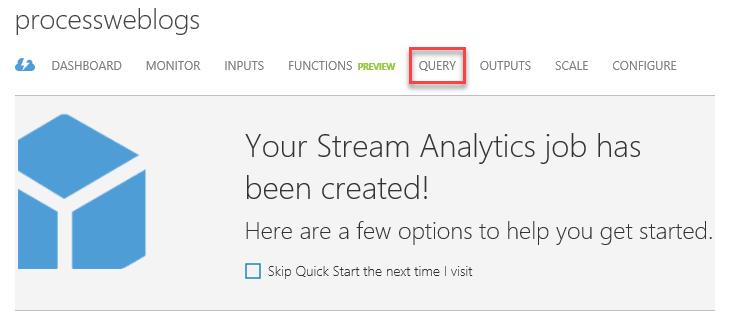

Click QUERY

Stream Analytics is using subset of T-SQL language to query data.
For more information, visit: https://manage.windowsazure.com

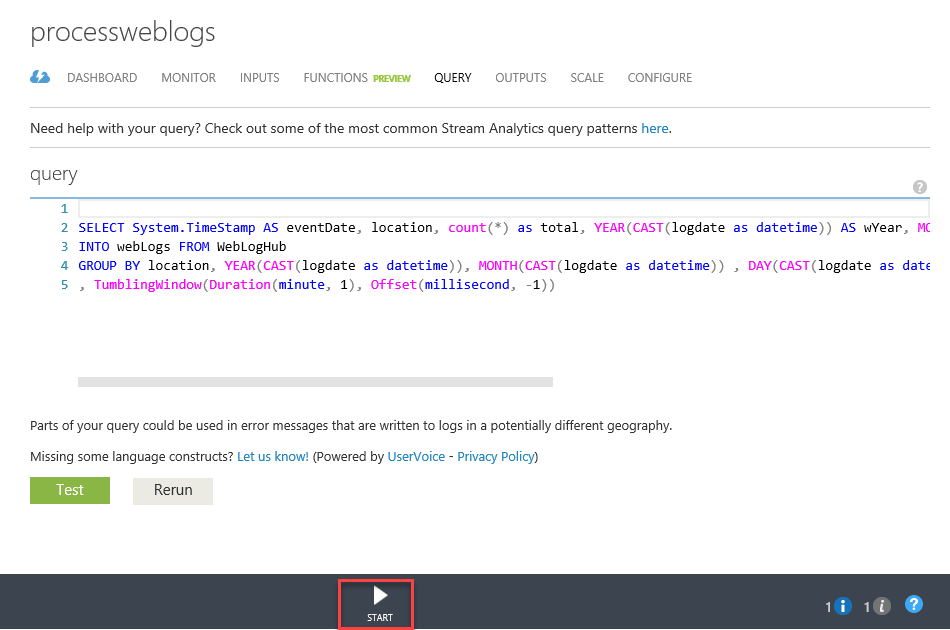

Here is the query I used in our example:


SELECT System.TimeStamp AS eventDate, location, count(*) as total, YEAR(CAST(logdate as datetime)) AS wYear, MONTH(CAST(logdate as datetime)) AS wMonth, DAY(CAST(logdate as datetime)) AS wDay
INTO webLog FROM WebLogHub
GROUP BY location, YEAR(CAST(logdate as datetime)), MONTH(CAST(logdate as datetime)) , DAY(CAST(logdate as datetime))
, TumblingWindow(Duration(minute, 1), Offset(millisecond, -1))

FROM – the name of our input
INTO – the name of our output. This can be skipped if you have only one output.
Click Start

Power BI

In the last step, we are going to present visits data on the map in Power BI.
Login to https://app.powerbi.com

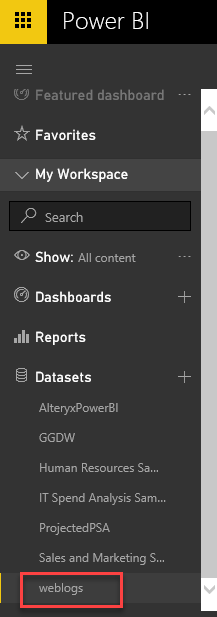

You should see your new data set. Click on it.

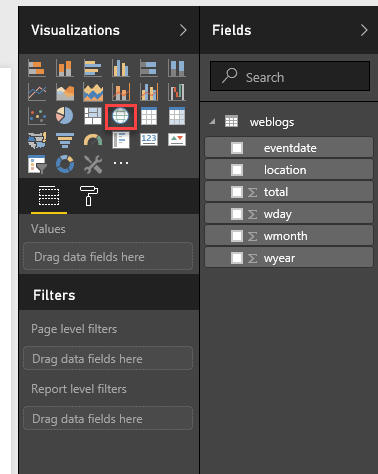

From the Visualizations, click on Map

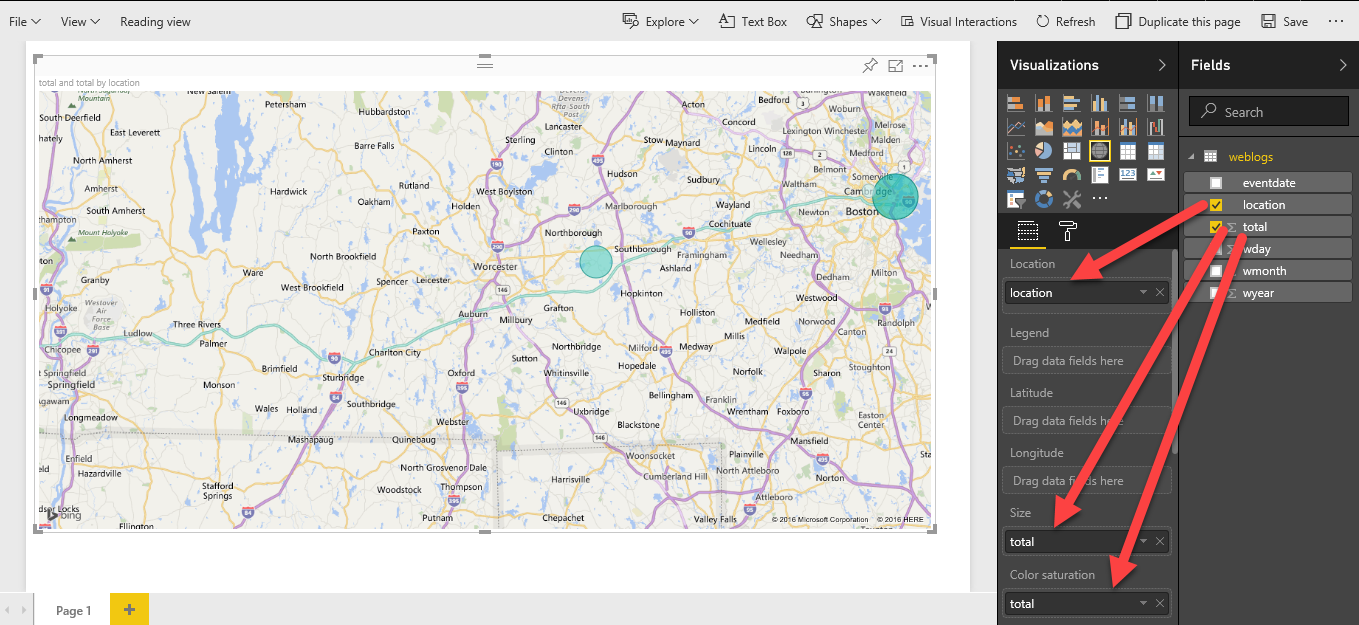

Drag location and drop to Location, and total to Size and Color Saturation.

Save as new report.
Done.
